DESIGN DEVELOPMENT

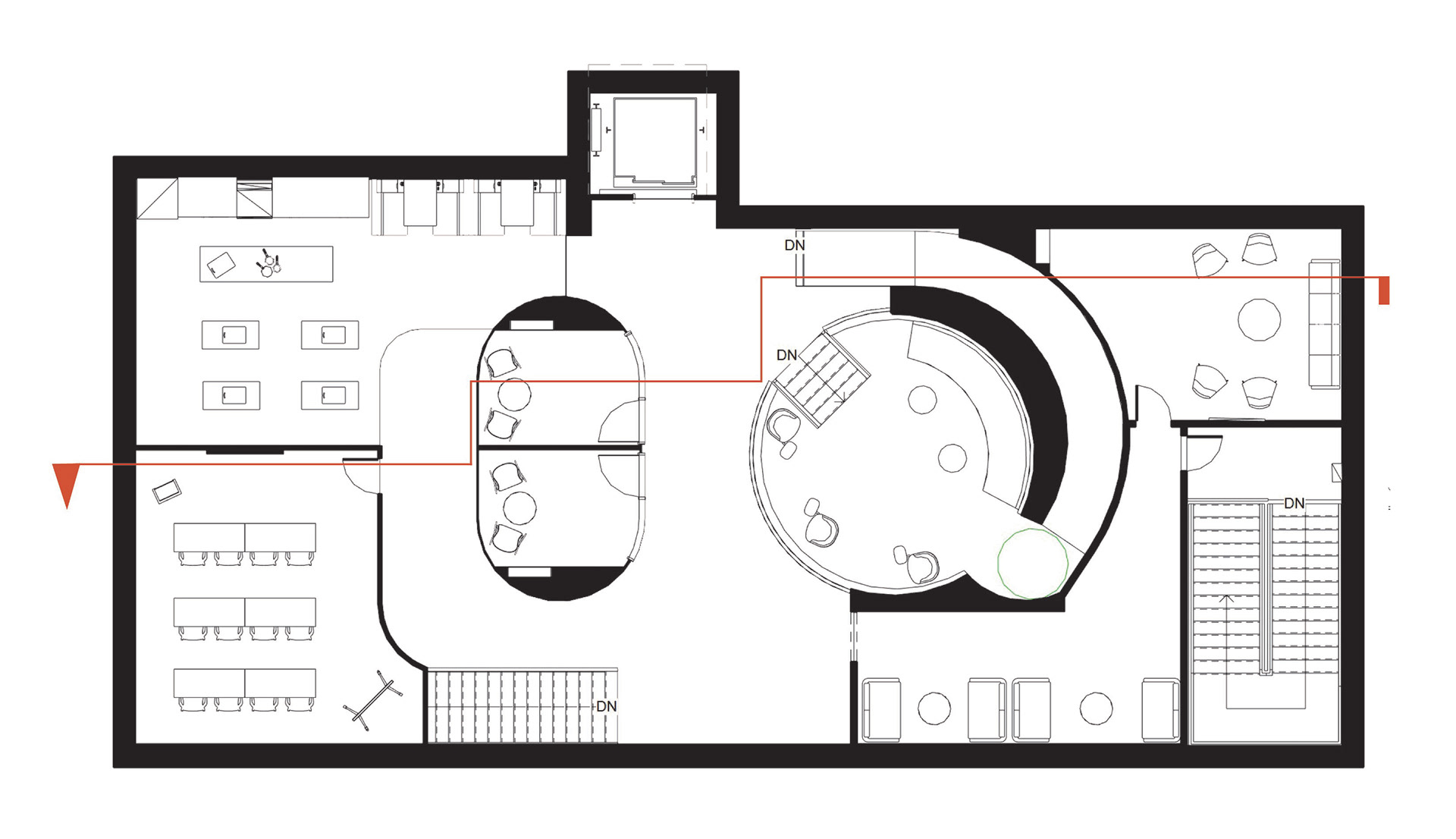

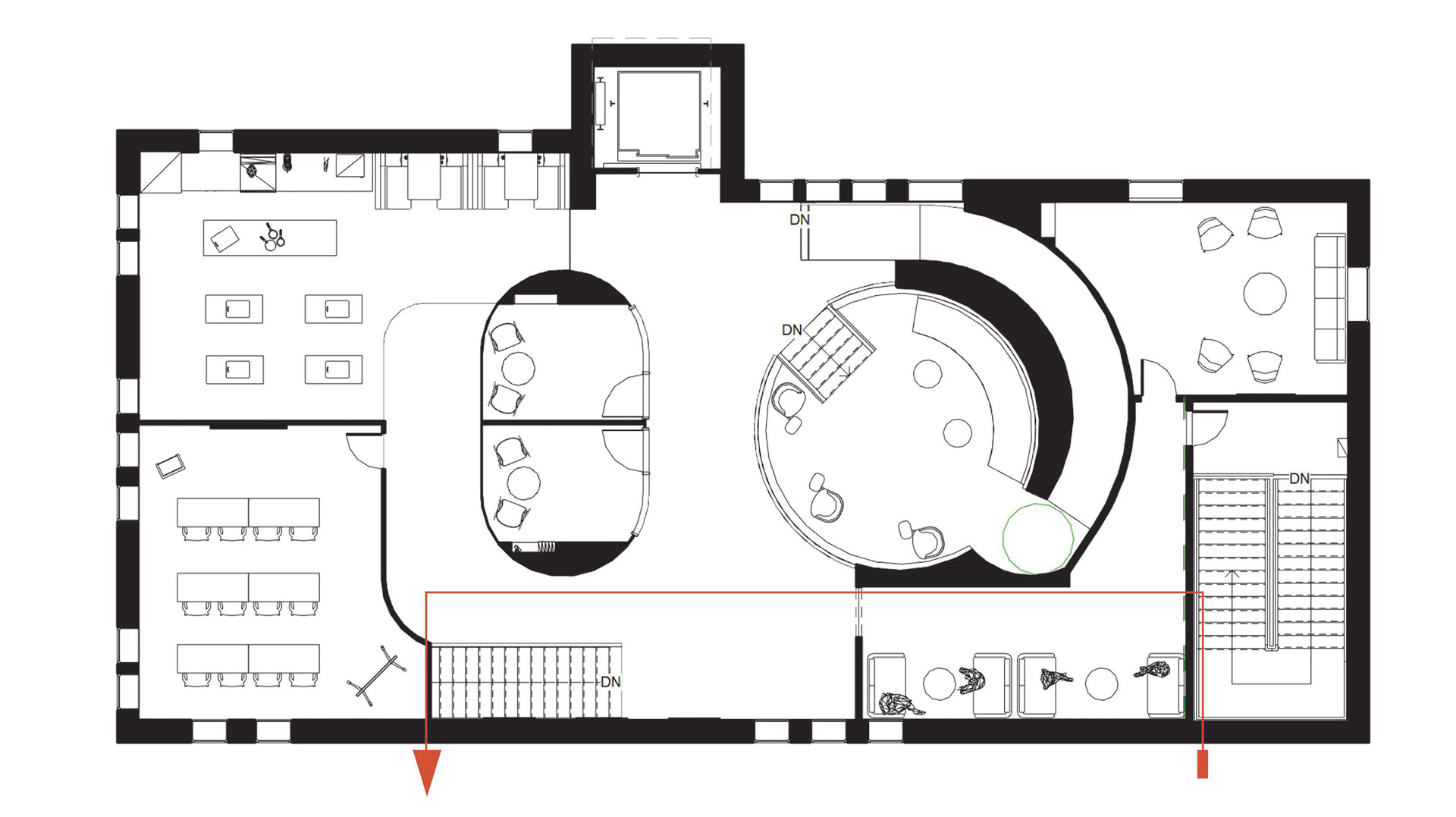

FLOOR PLANS

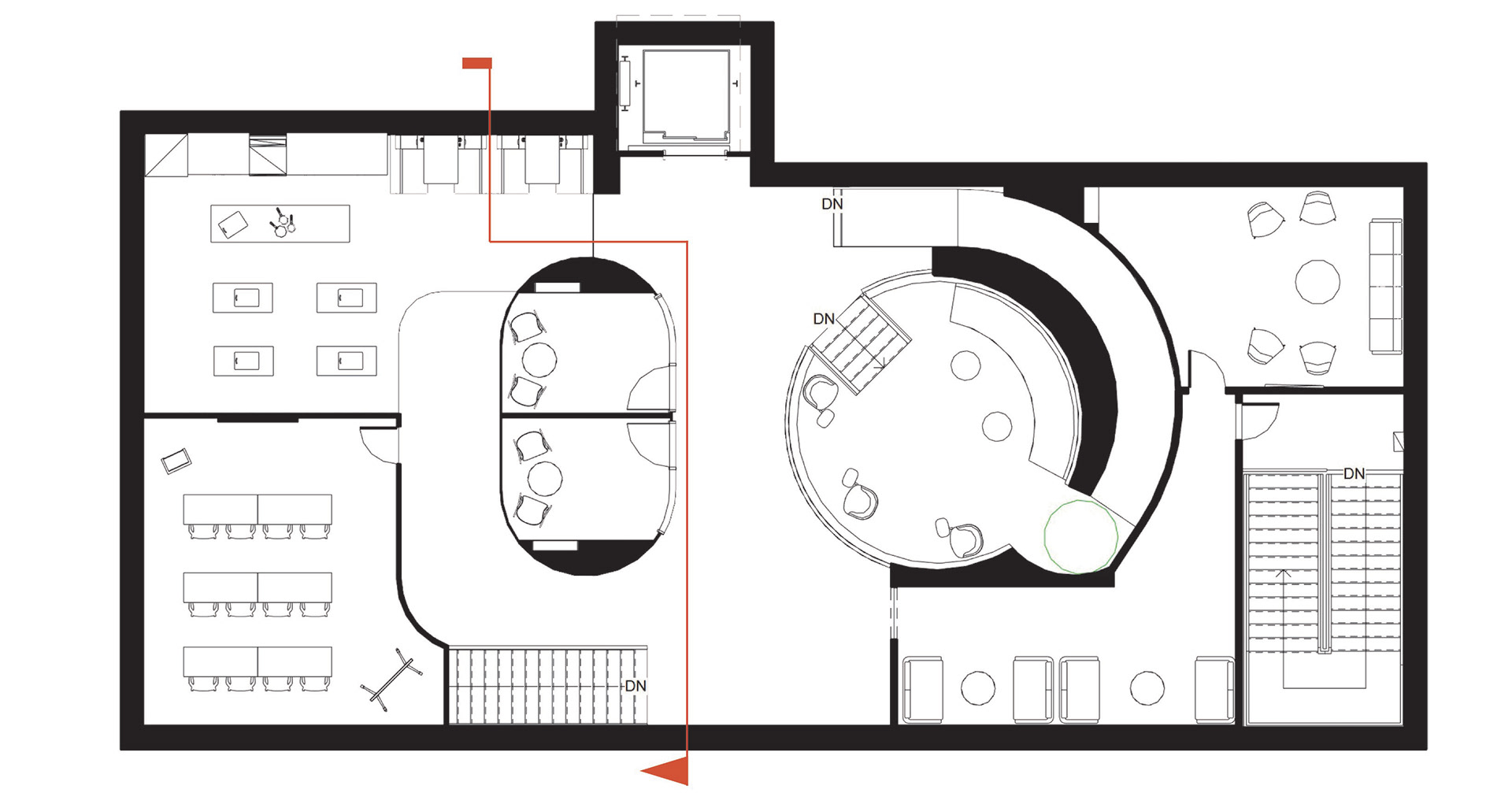

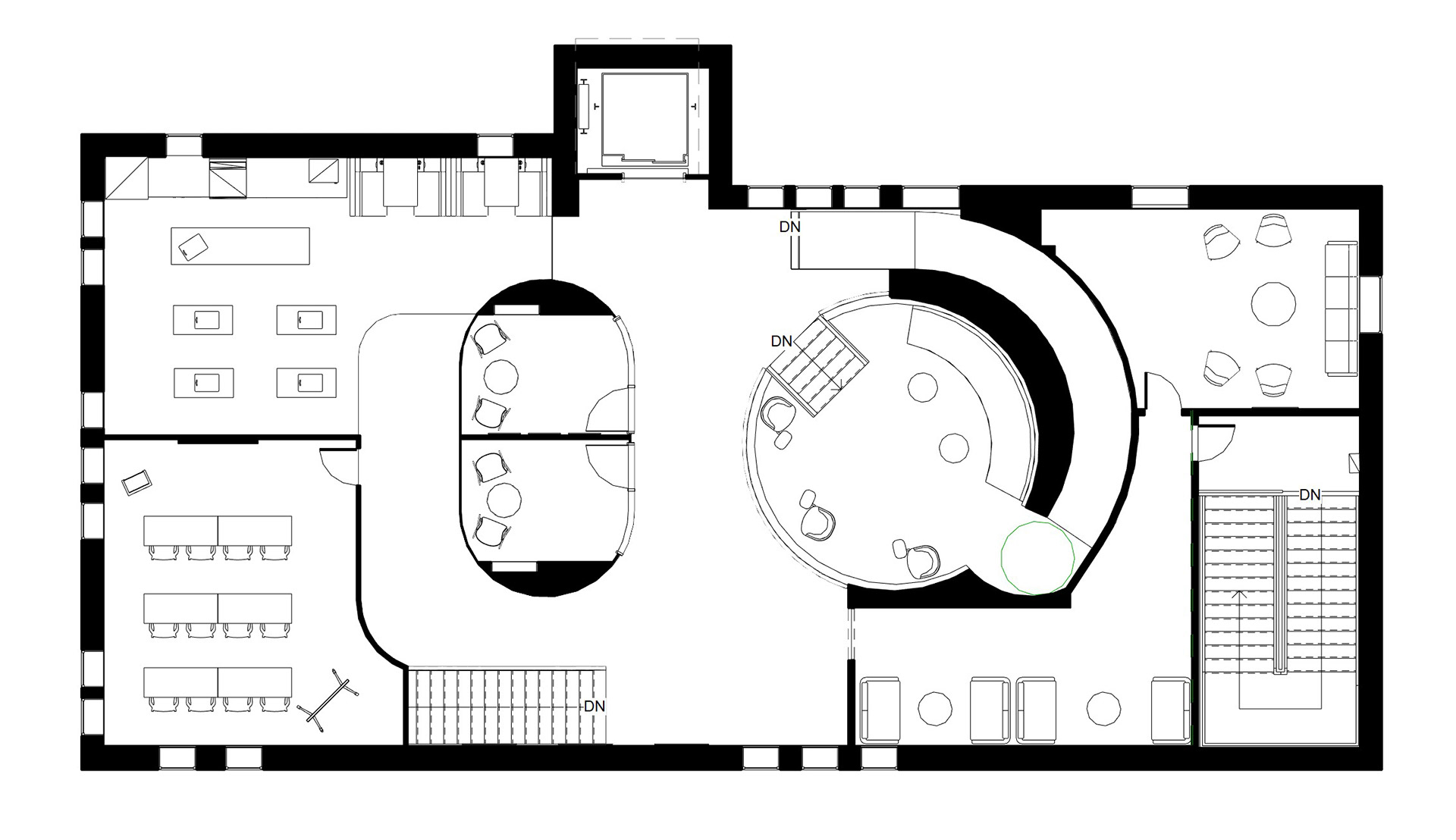

FLOOR TWO

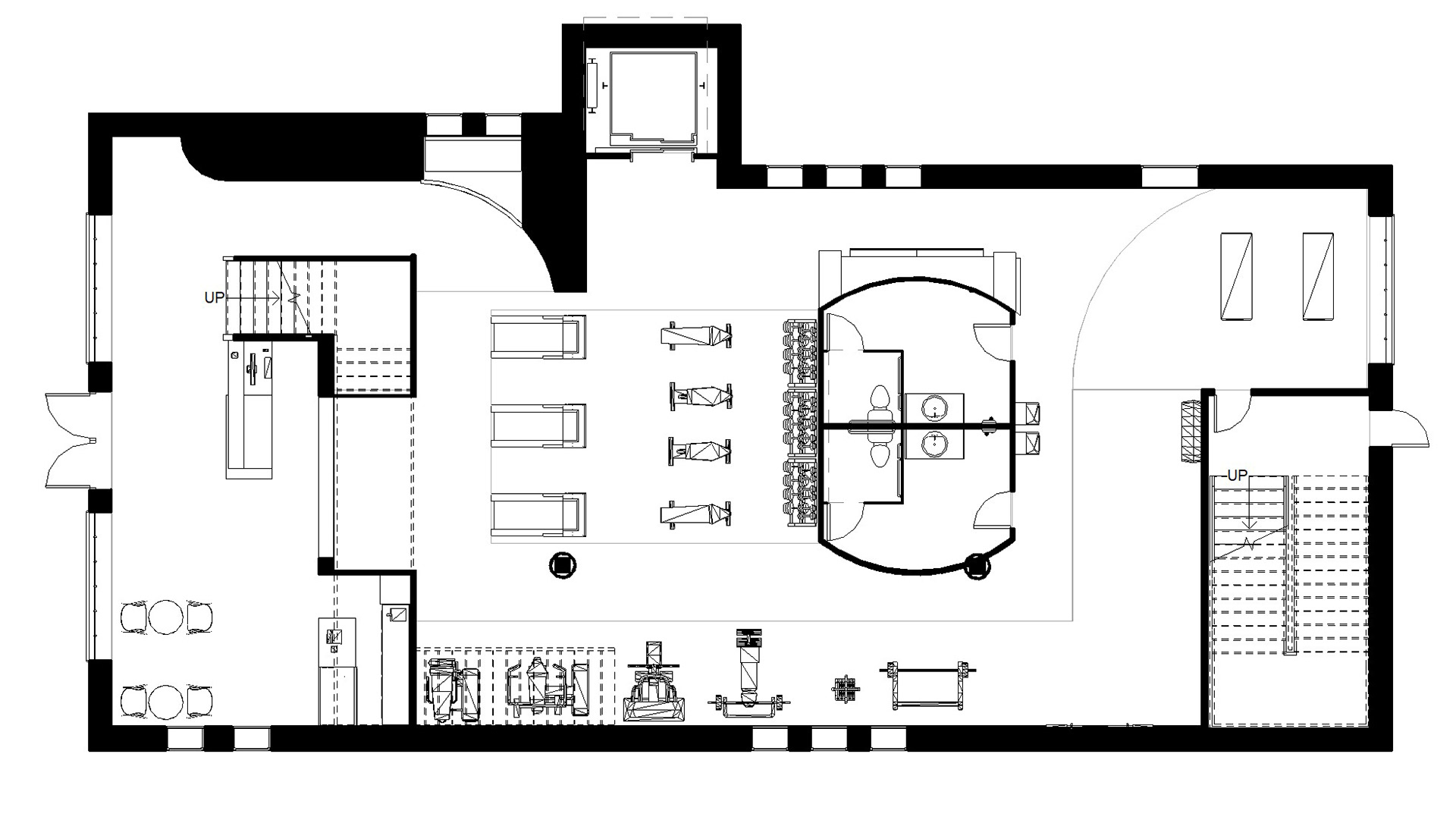

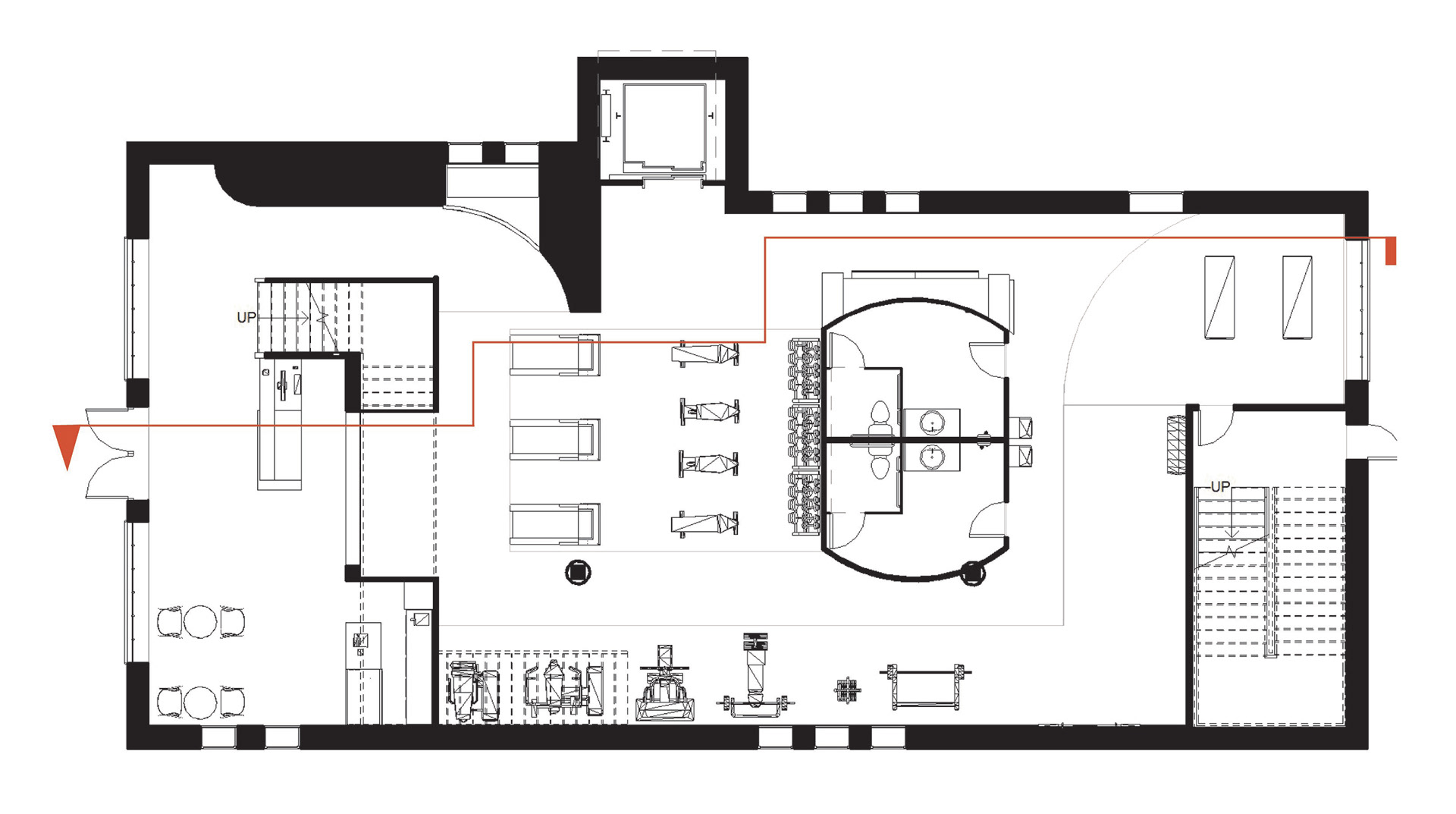

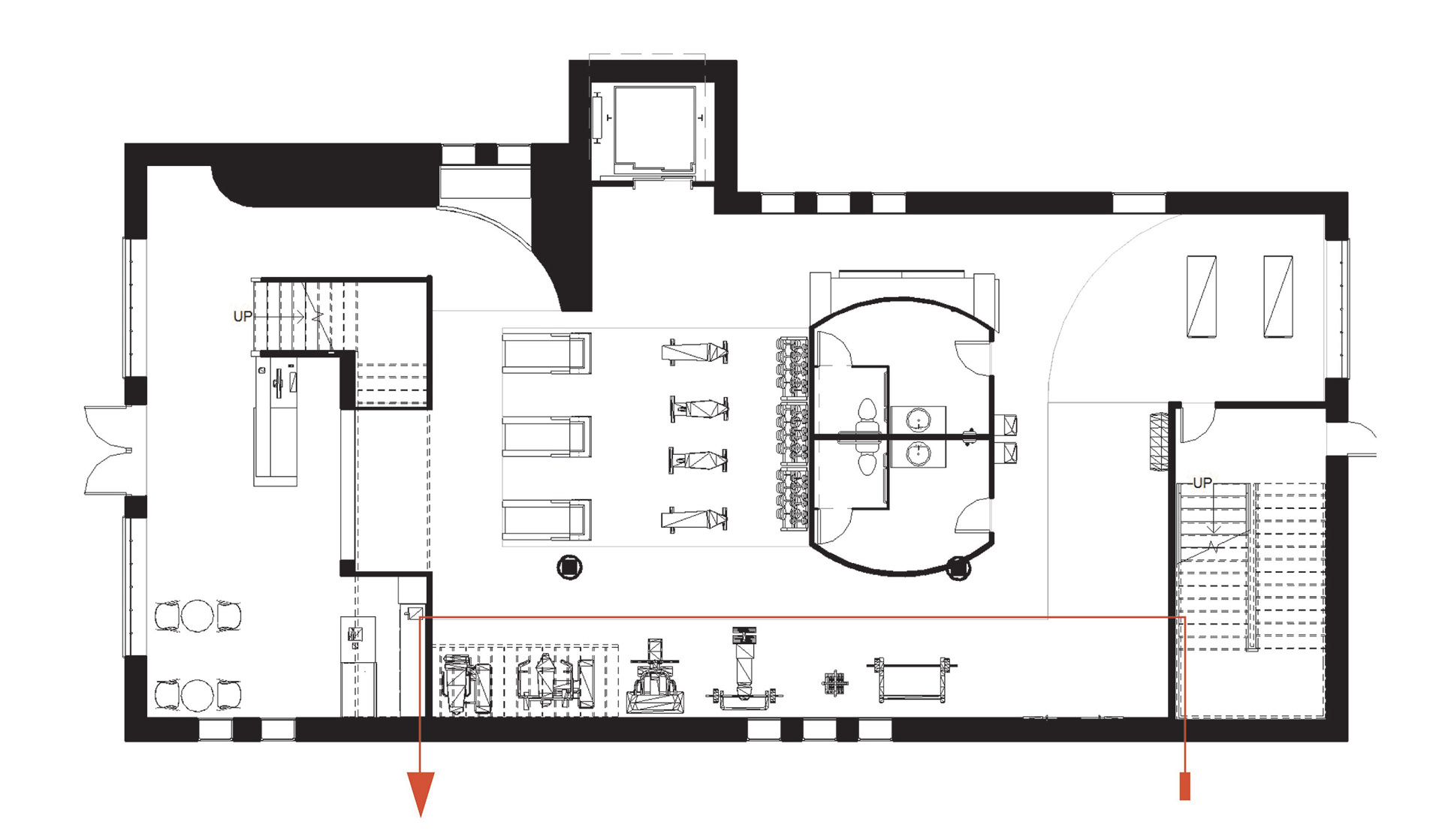

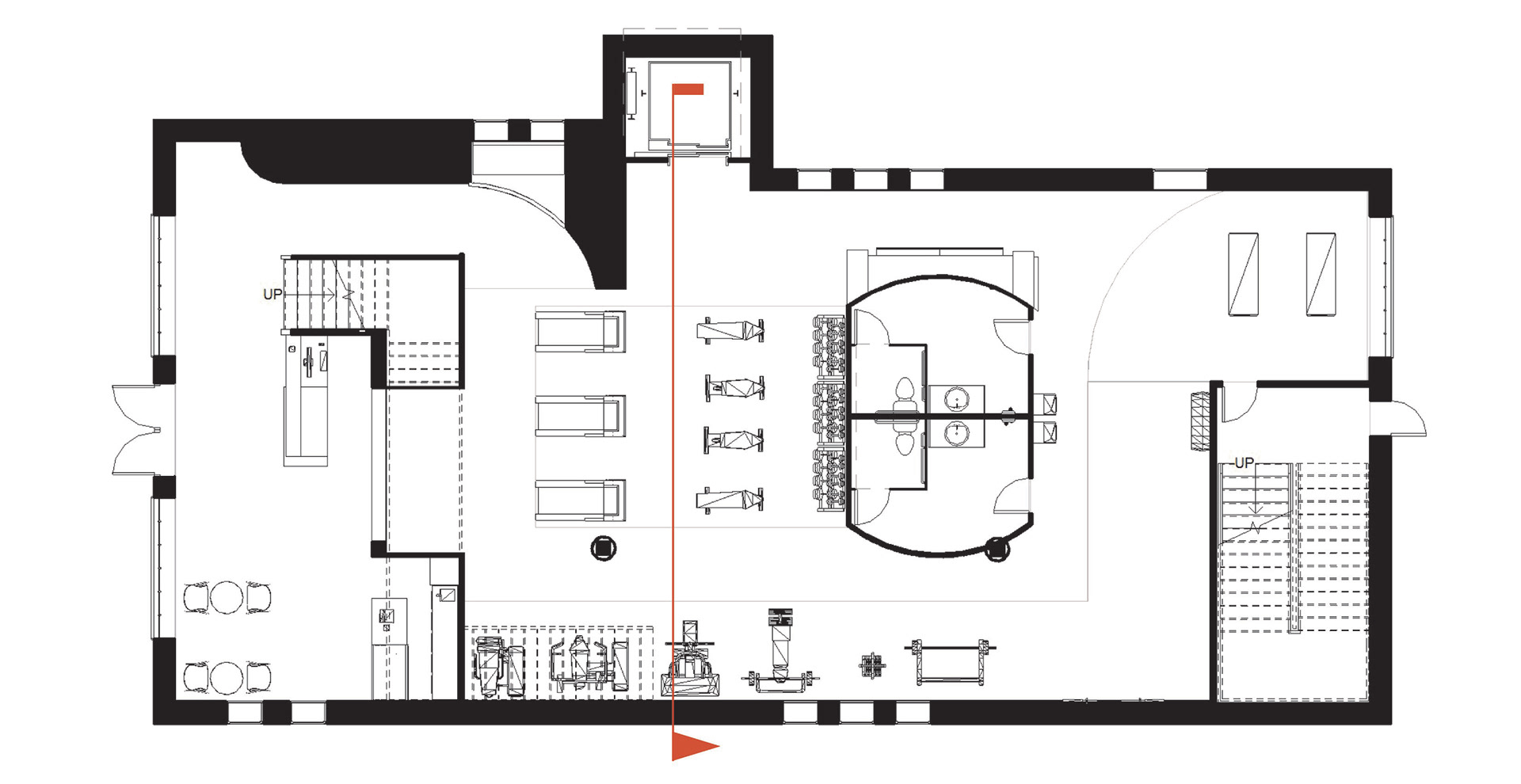

FLOOR ONE

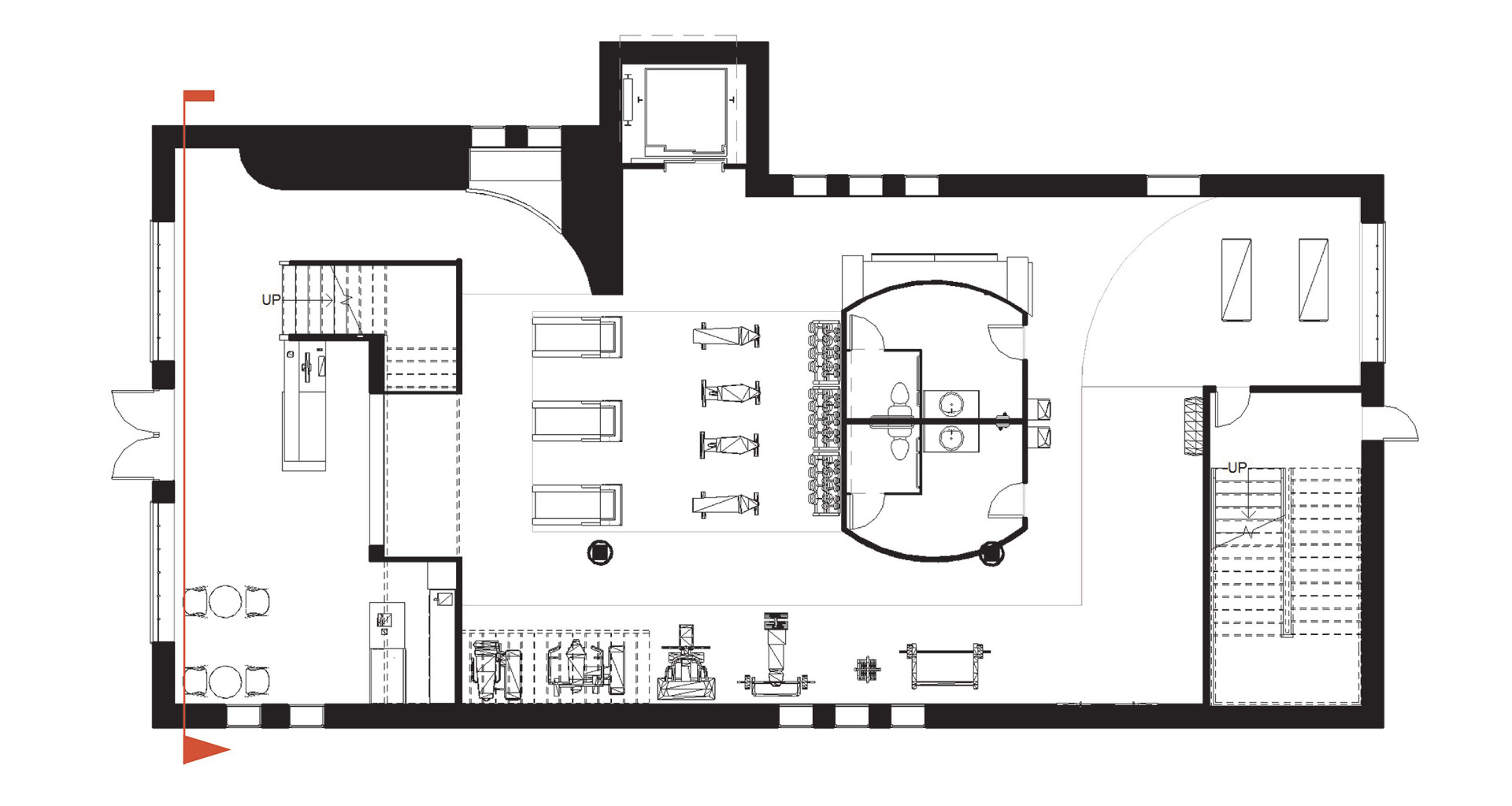

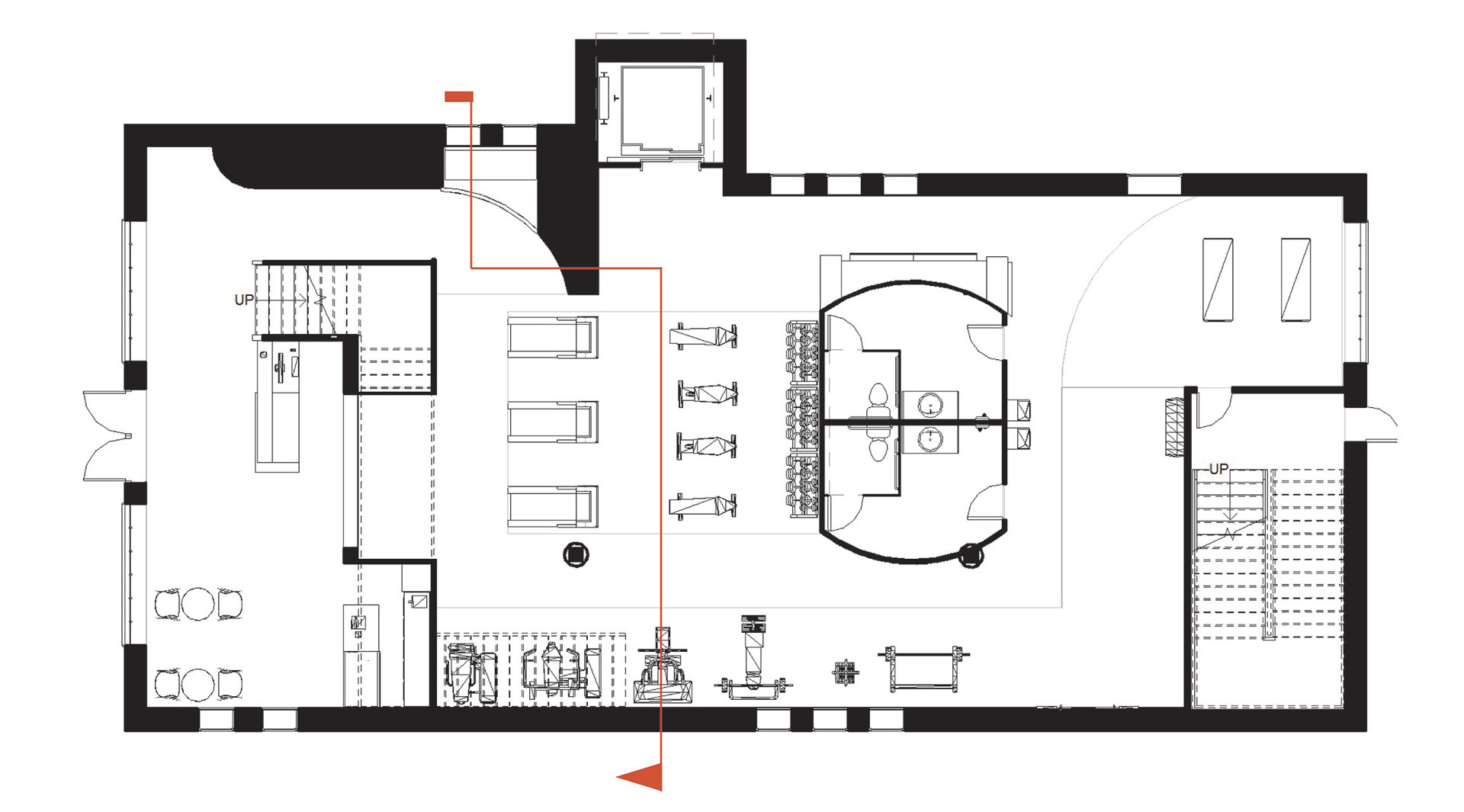

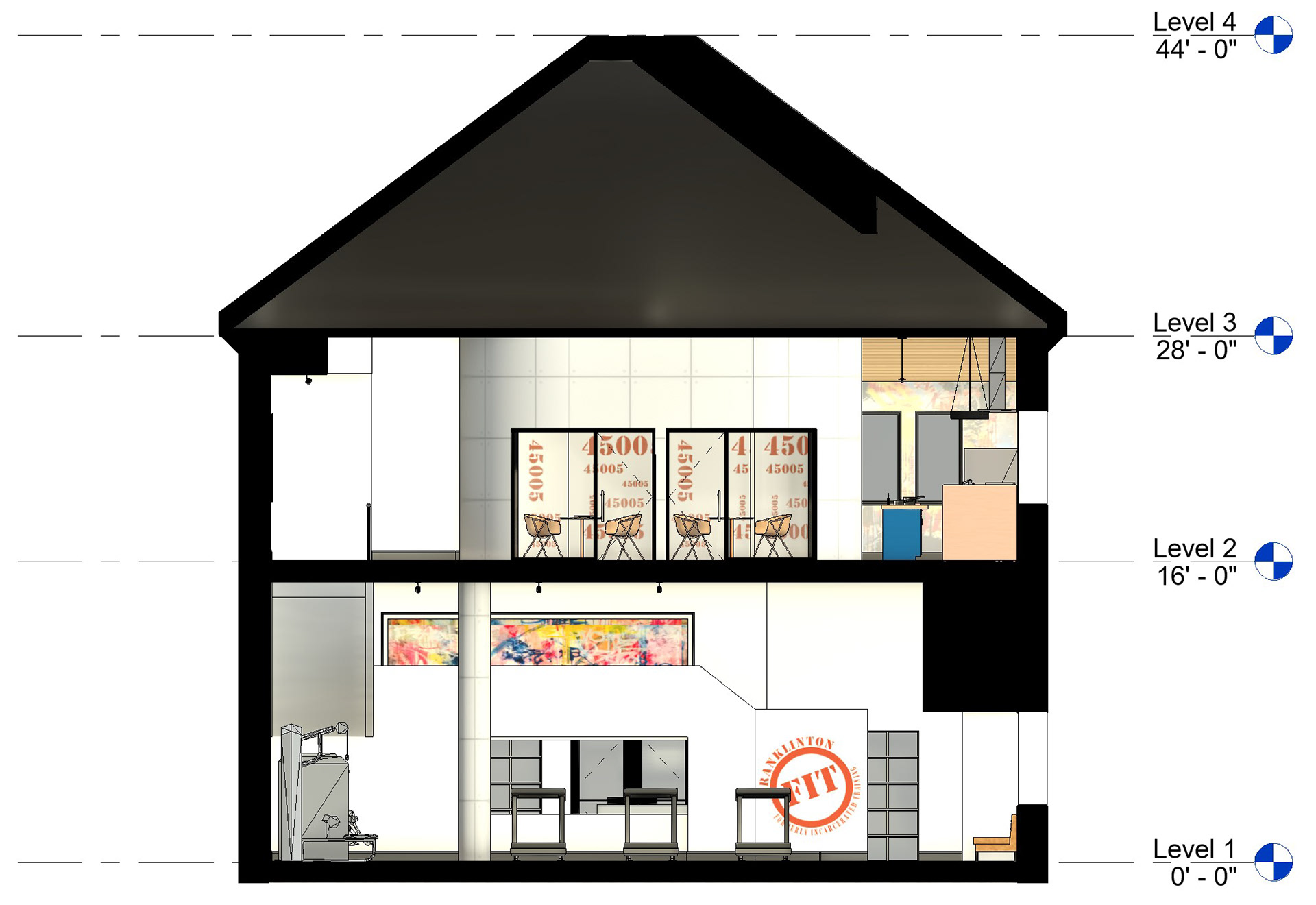

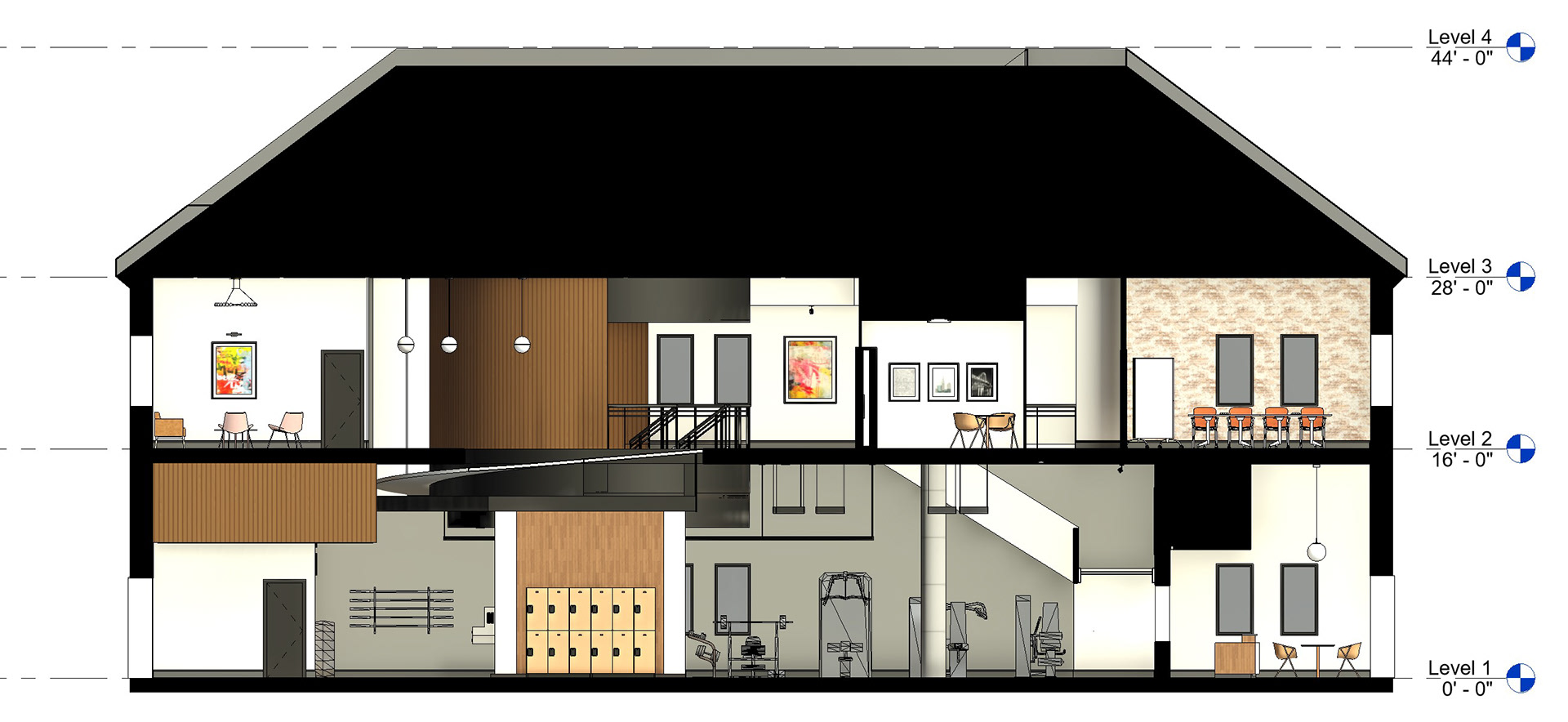

SECTIONS

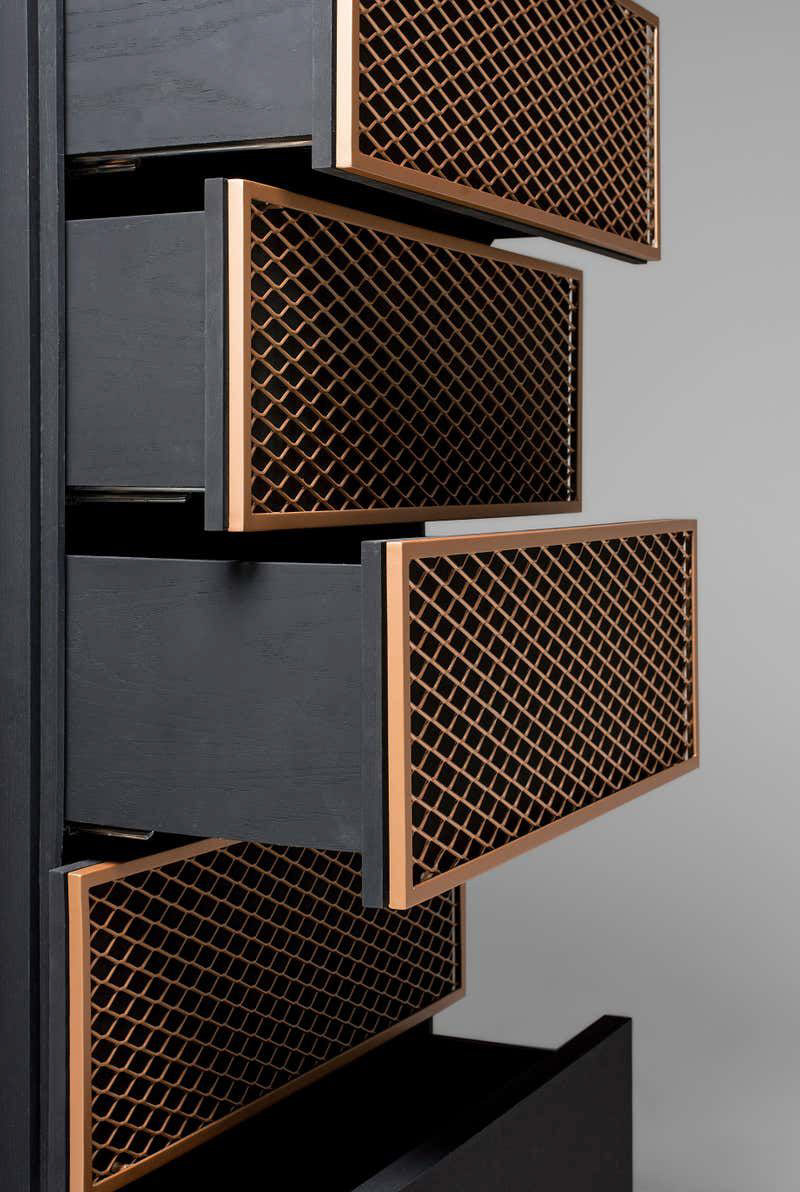

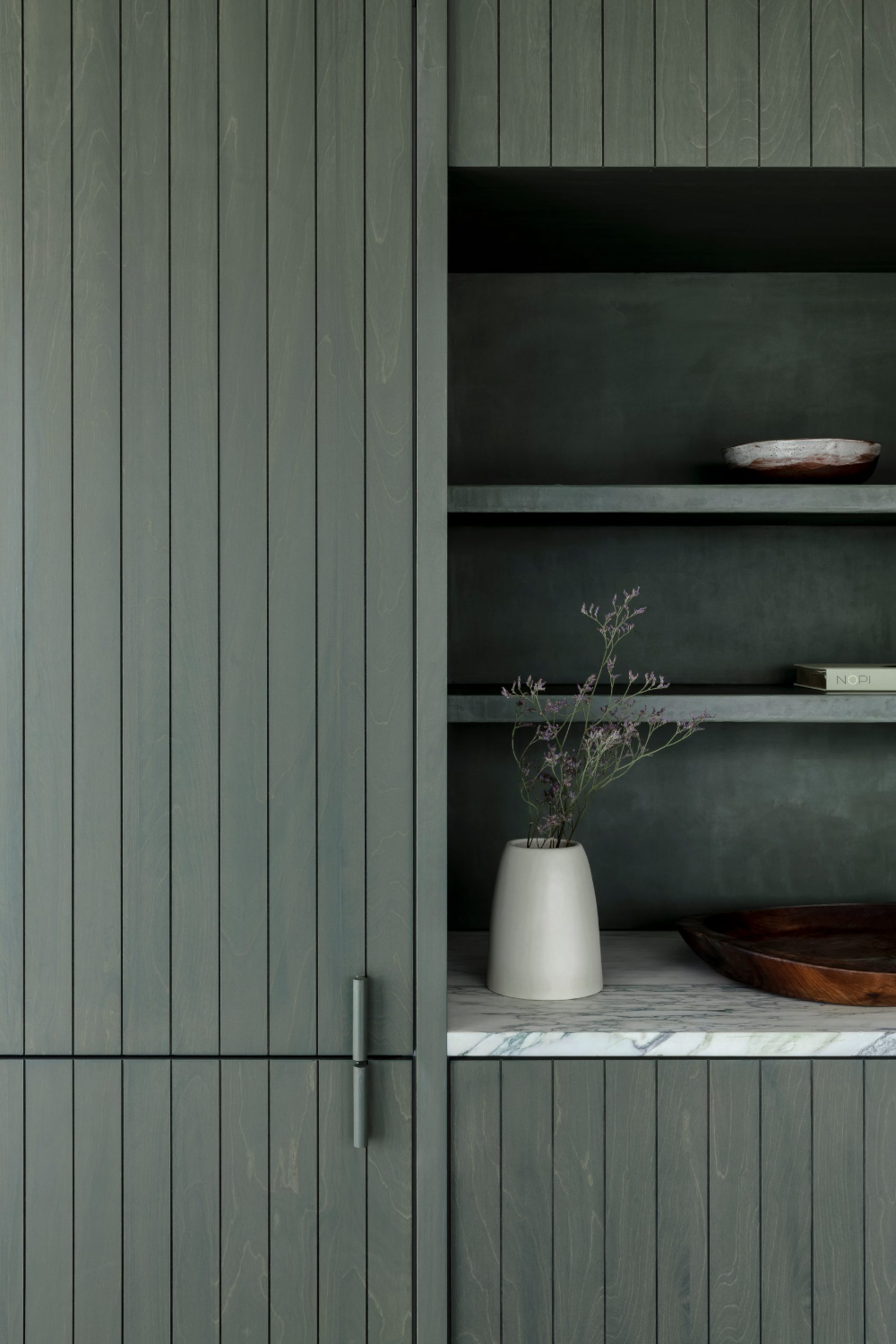

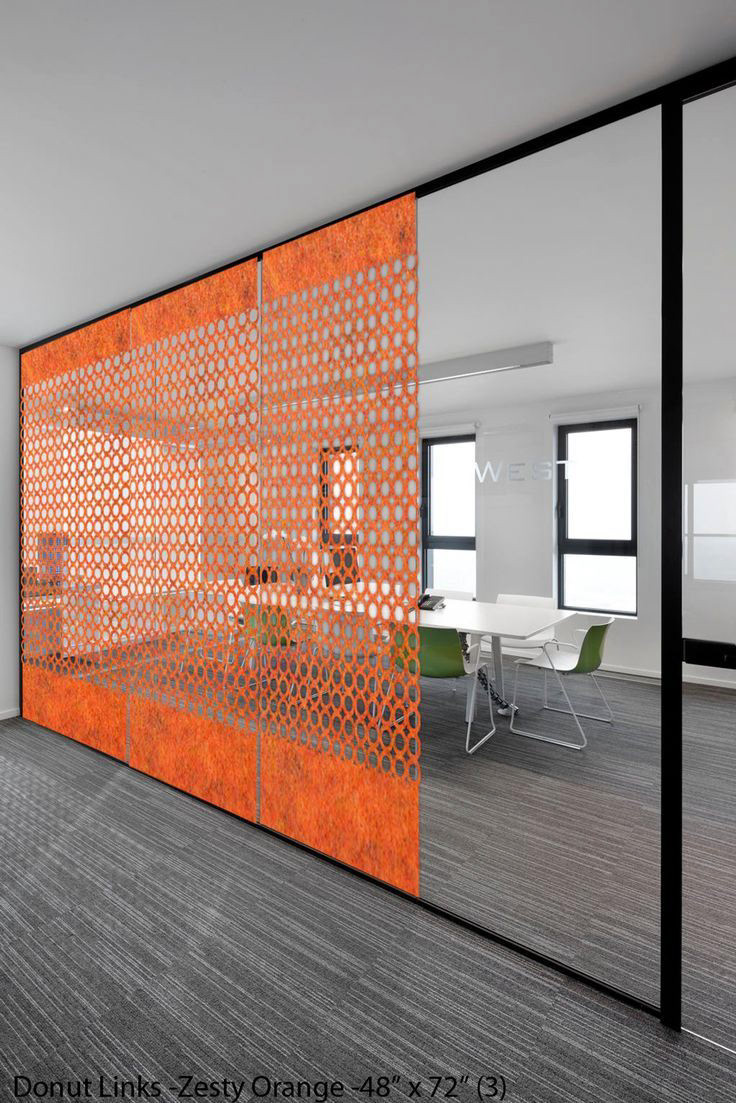

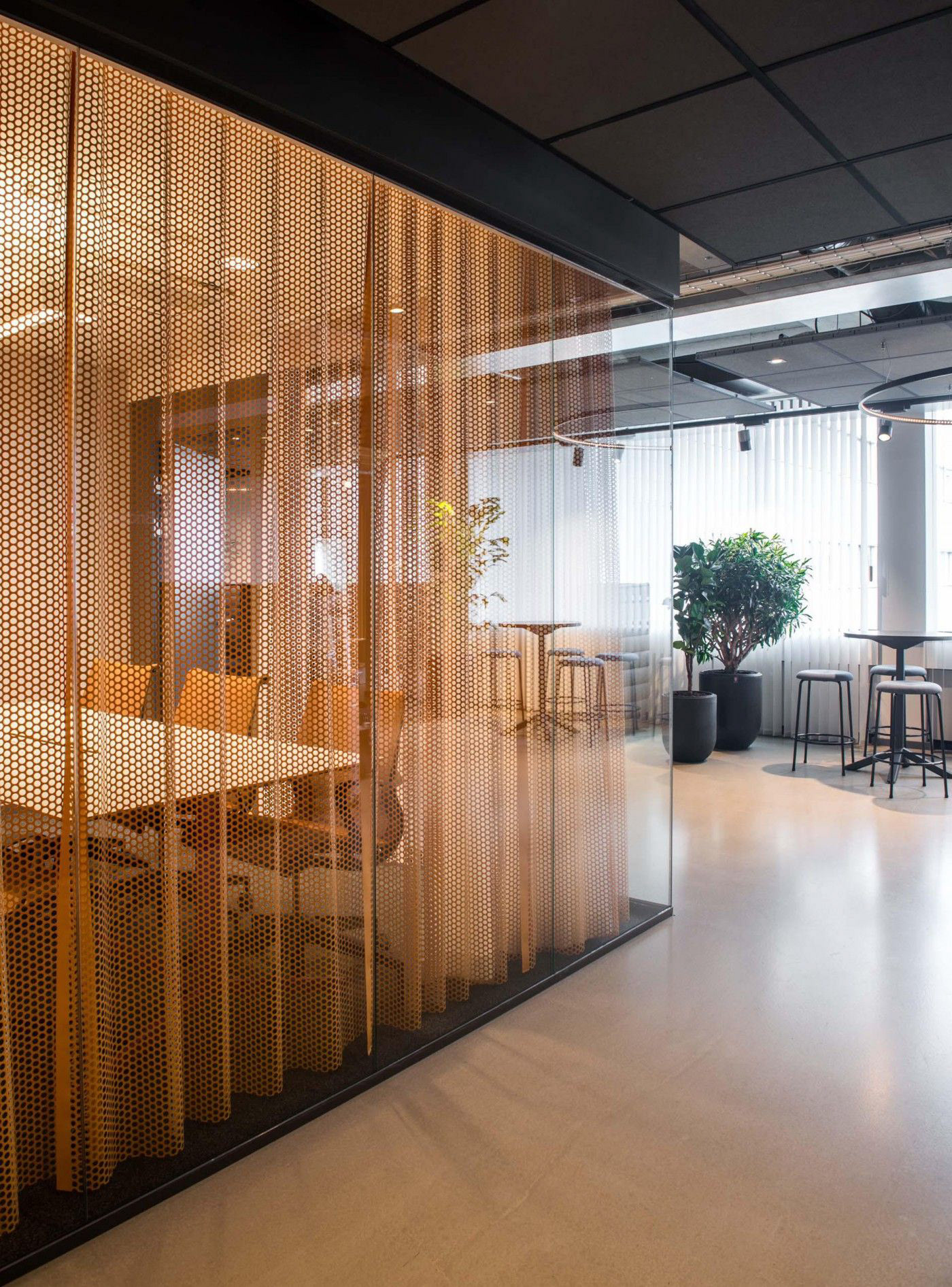

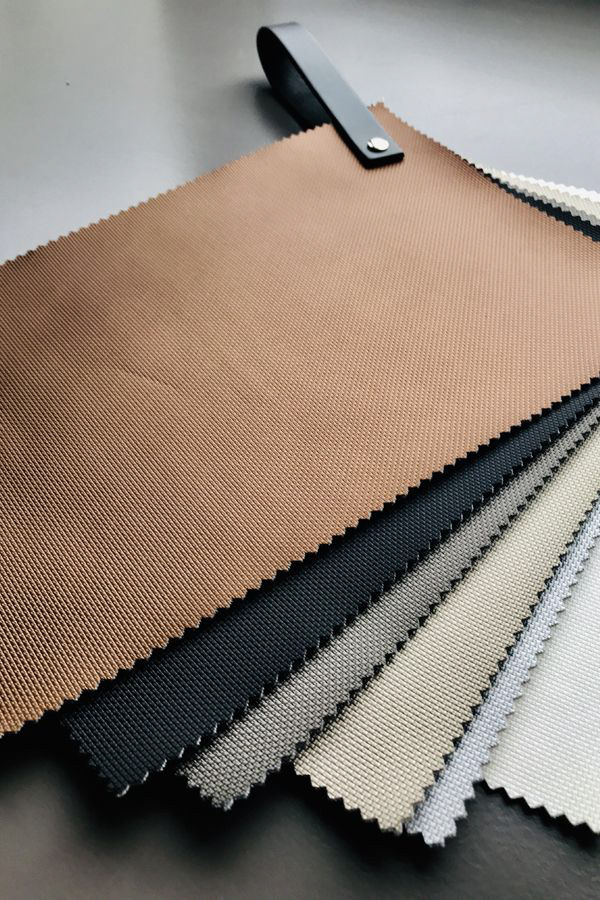

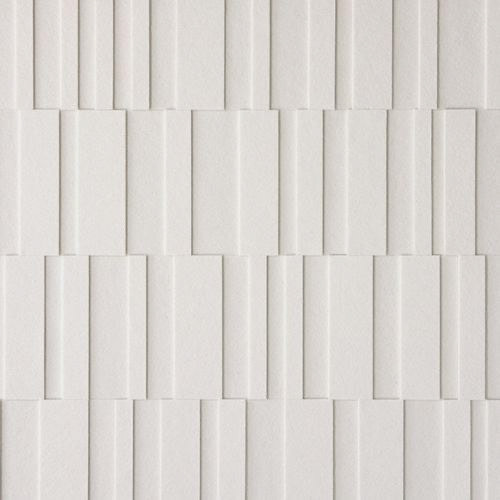

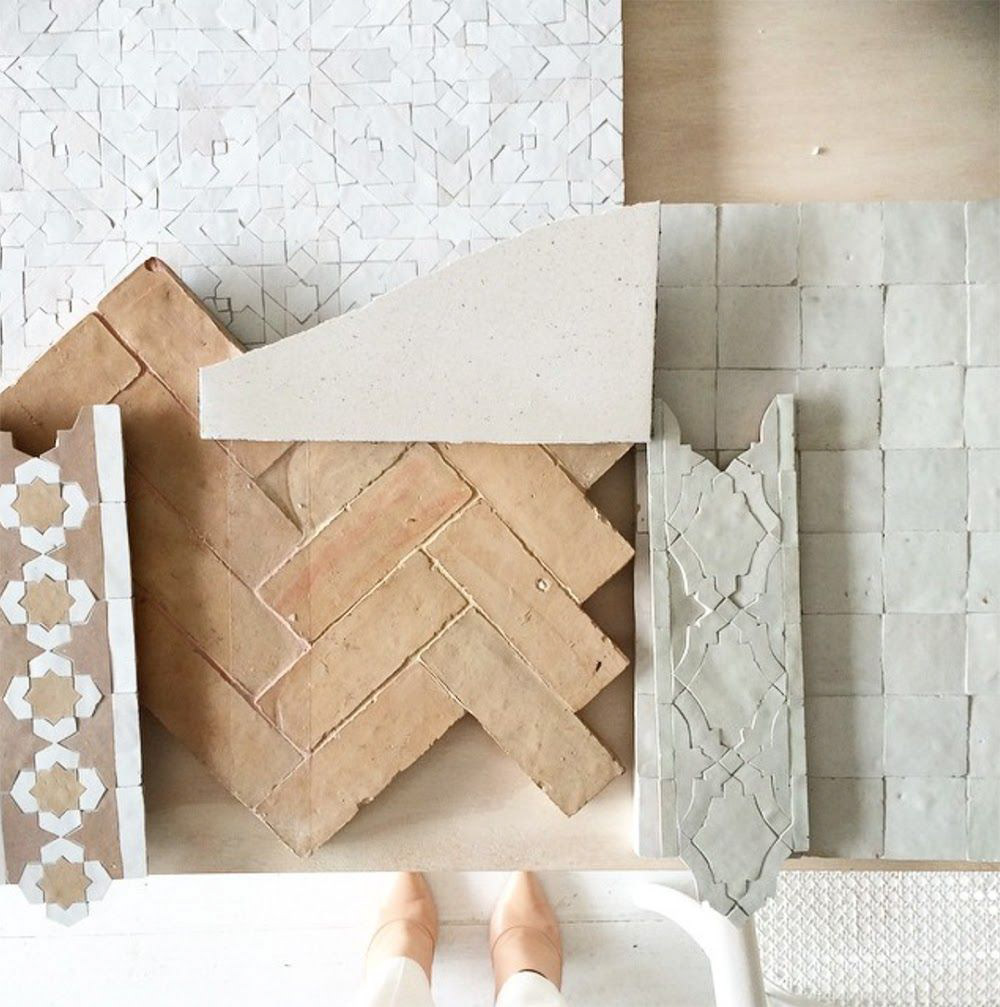

MATERIALS

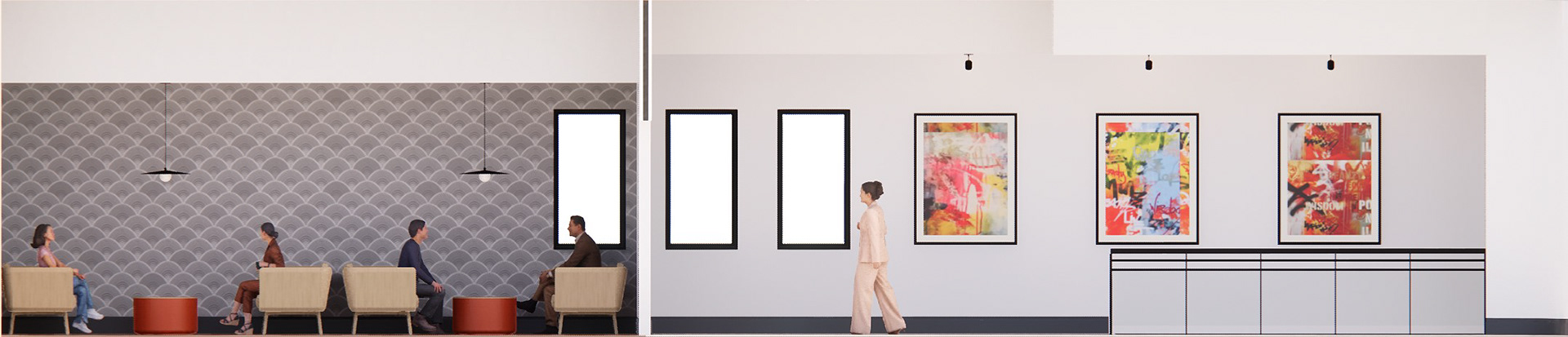

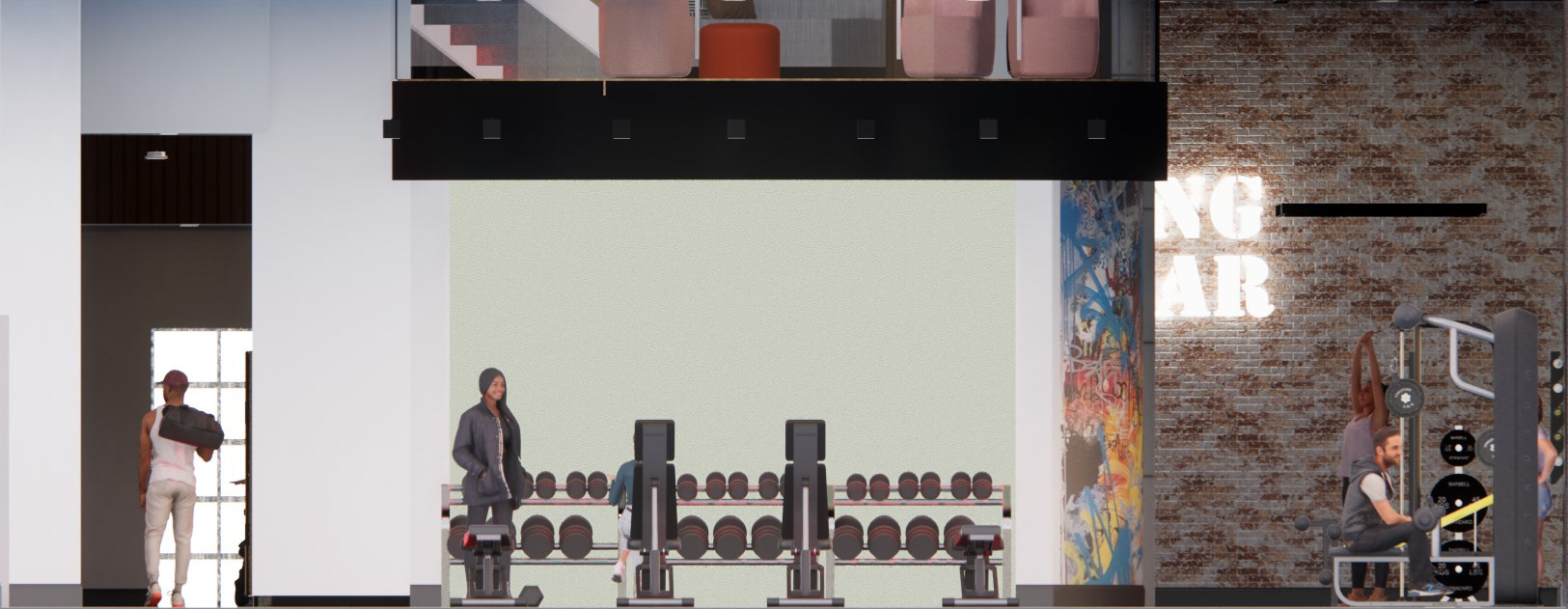

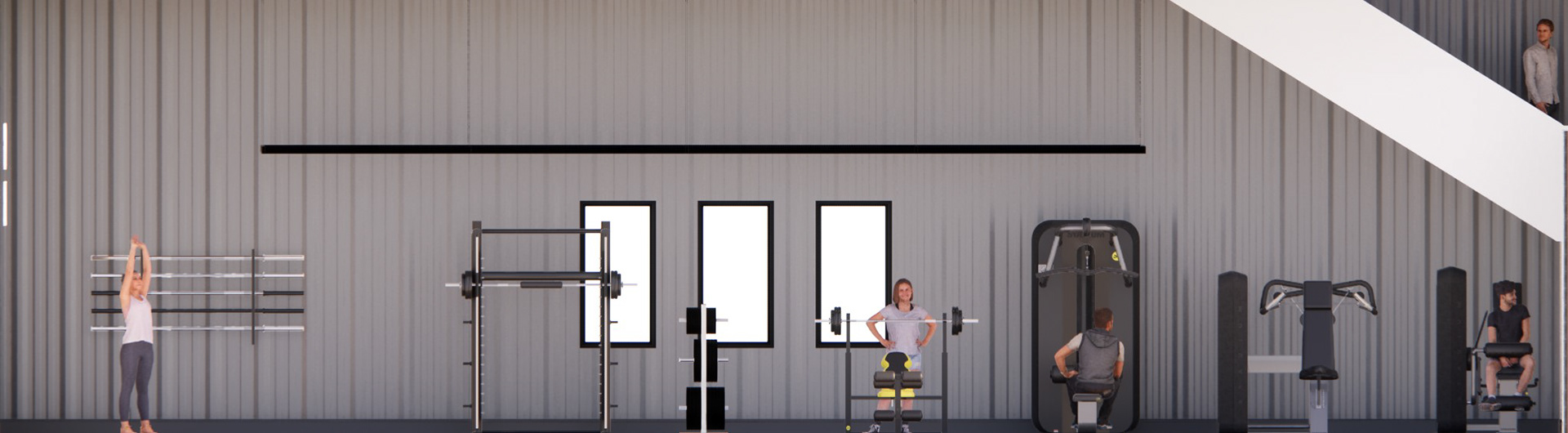

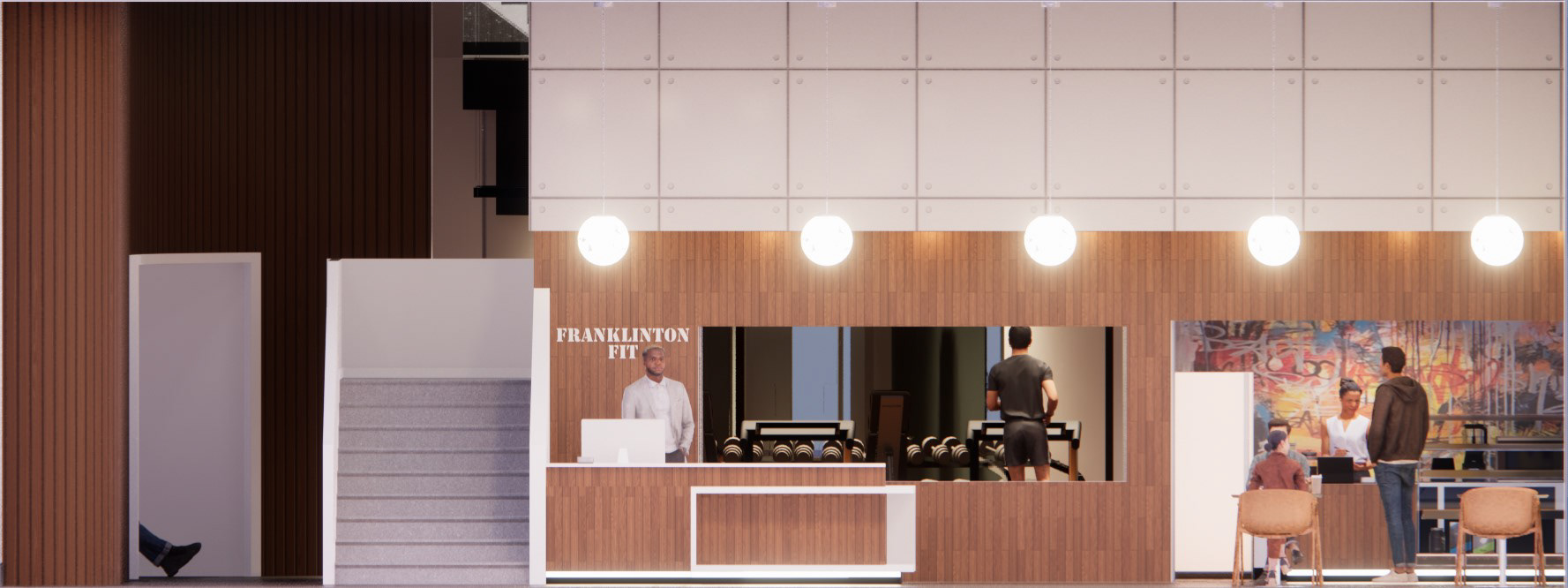

INTERIOR ELEVATIONS
A
A
B
B
C
C
D
D
RENDERINGS
LOBBY
FITNESS SPACE
GATHERING SPACE
DEMONSTRATION KITCHEN
FITNESS AREA

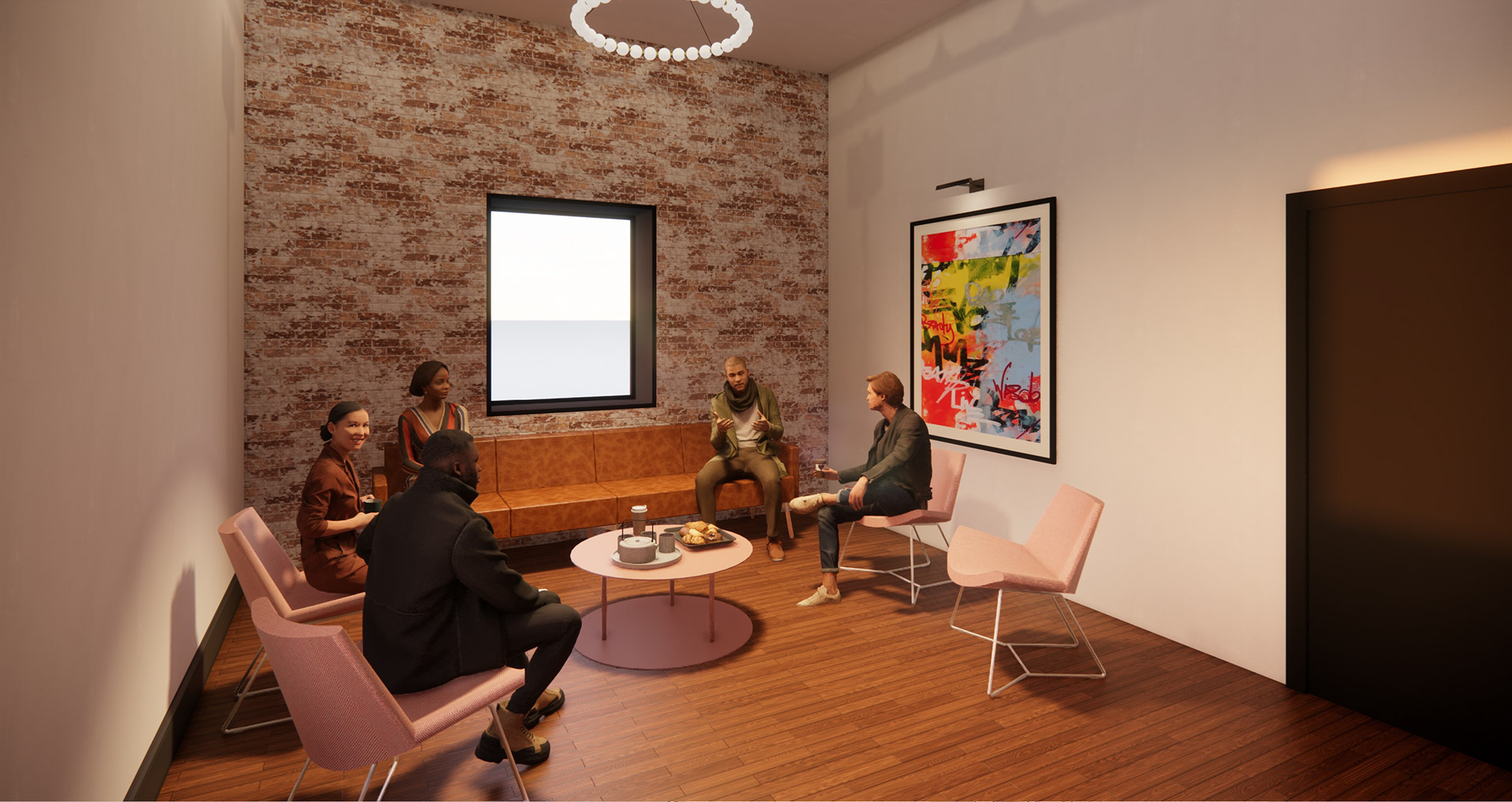

GROUP THERAPY
LIGHTING DESIGN

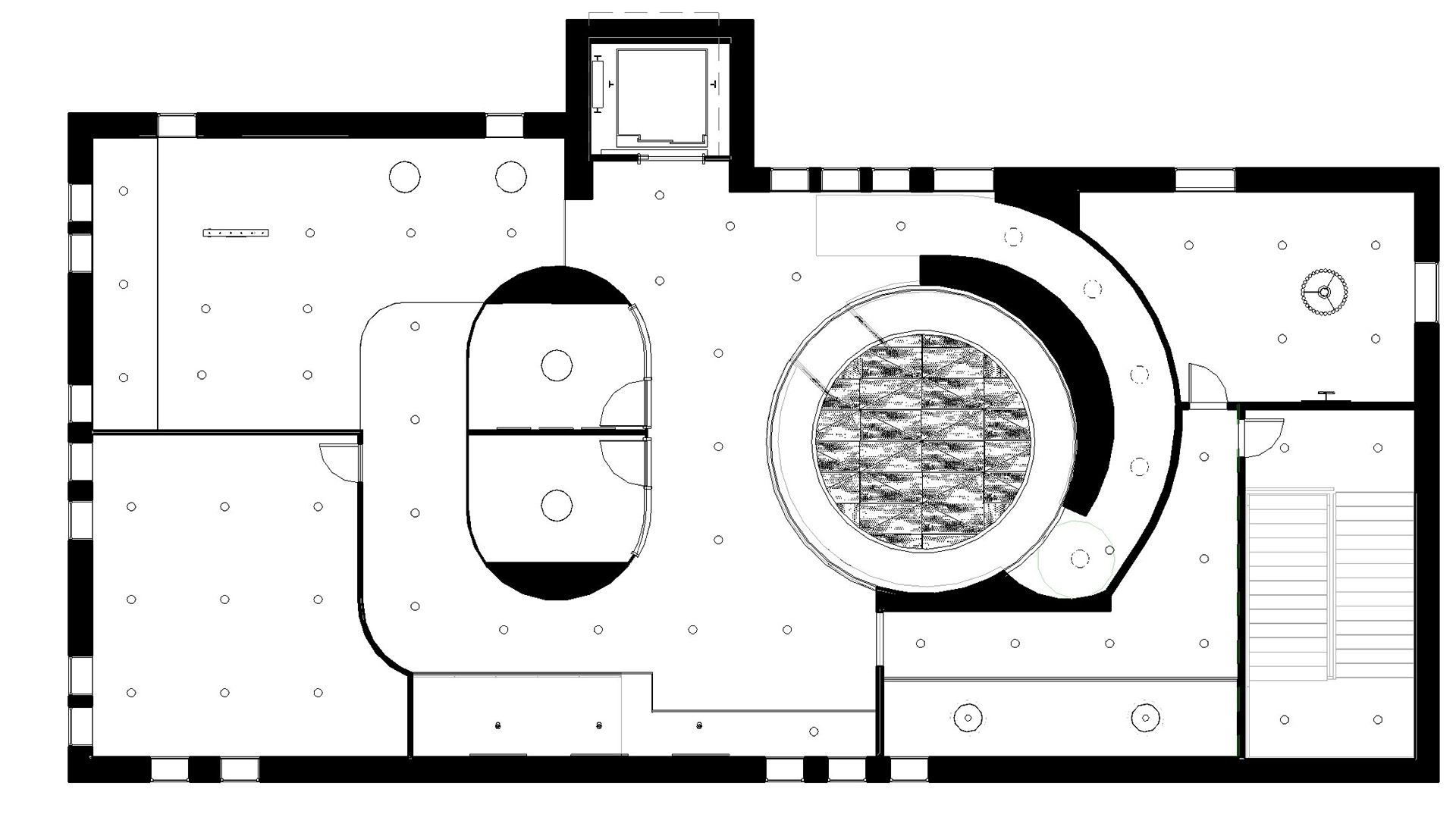

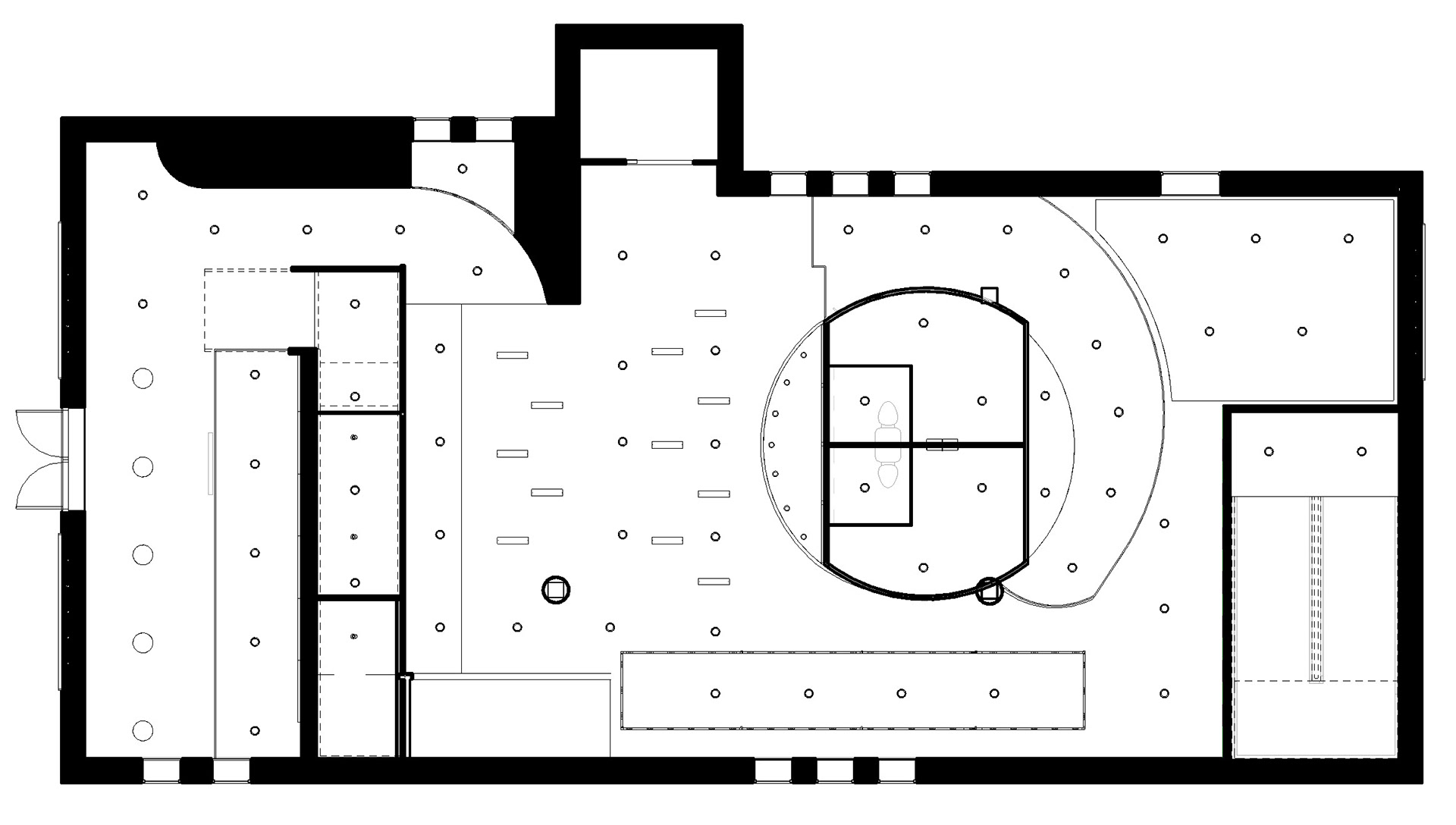

REFLECTED CEILING PLAN
FLOOR TWO
FLOOR ONE

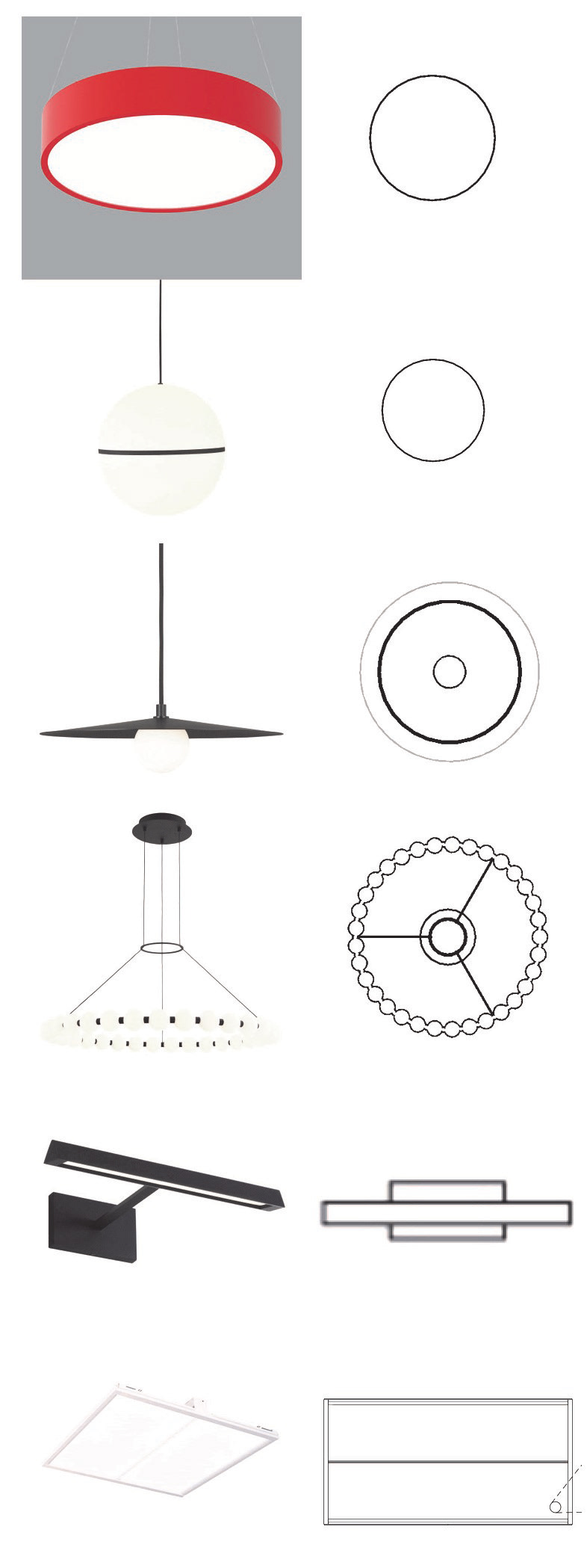

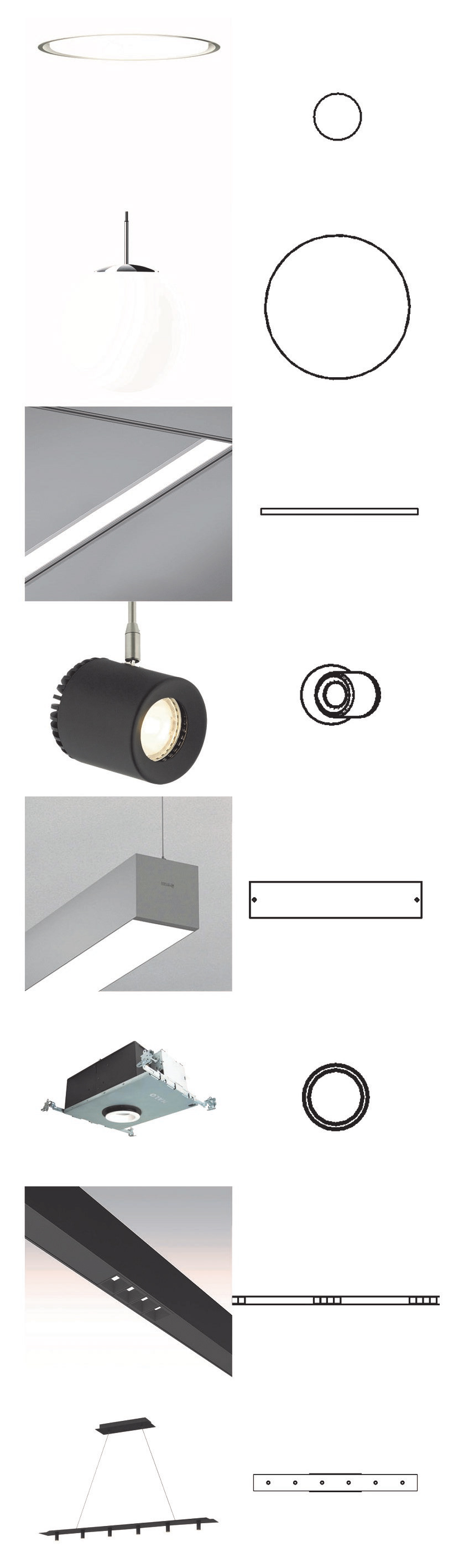

LIGHTING SCHEDULE
FIXTURE
DESCRIPTION
LT-1
BEGA LIGHTING
RECESSED CEILING LUMINAIRE - 50 289
Used throughout both floors for ambient lighting
LT-2
BEGA LIGHTING
PENDANT LUMINAIRE - 56 588
Used in lobby for accent lighting, aesthetic choice
LT-3
AXIS LIGHTING
RECESSED CEILING LUMINAIRE - SCULPT RECESSED
Used in lobby for accent lighting, aesthetic choice
LT-4
BEGA LIGHTING
SURFACE MOUNTED SPOTLIGHT - BURK HEAD
Used to illuminate artwork
LT-5
BEGA LIGHTING
SUSPENDED LUMINAIRE - BEAM 6 PENDANT
Used throughout gym area for focal glow
LT-6
HALO LIGHTING
RECESSED CEILING LUMINAIRE - HL36A LED 3"
Used for downlighting over free weights
LT-7
AXIS LIGHTING
SUSPENDED LUMINAIRE - STENCIL FLEX
Used in gym area for task lighting
LT-8
TECH LIGHTING
SUSPENDED LINEAR CEILING LUMINAIRE - PONTE 50
Used as accent lighting in demonstration kitchen
LT-9
LUMENWERX LIGHTING
PENDANT LUMINAIRE - POP COLOR RECESSED
Used for task lighting in demonstration kitchen and consultation rooms
LT-10
TECH LIGHTING
PENDANT LUMINAIRE - HANEA GRANDE PENDANT
Used as accent lighting above social hub ramp
LT-11
TECH LIGHTING
PENDANT LUMINAIRE - PIRLO PENDANT
Used in group therapy waiting area
LT-12
TECH LIGHTING
RECESSED CEILING LUMINAIRE - ORBET 36 CHANDELIER
Used as accent lighting in group therapy room
LT-13
TECH LIGHTING
WALL MOUNTED PICTURE LIGHT - DESSAU 12 PICTURE LIGHT
Used to spotlight artwork
LT-14
CORELITE LIGHTING
RECESSED CEILING LUMINAIRE - DIVIDE RECESSED
Used above social hub for play of brilliance

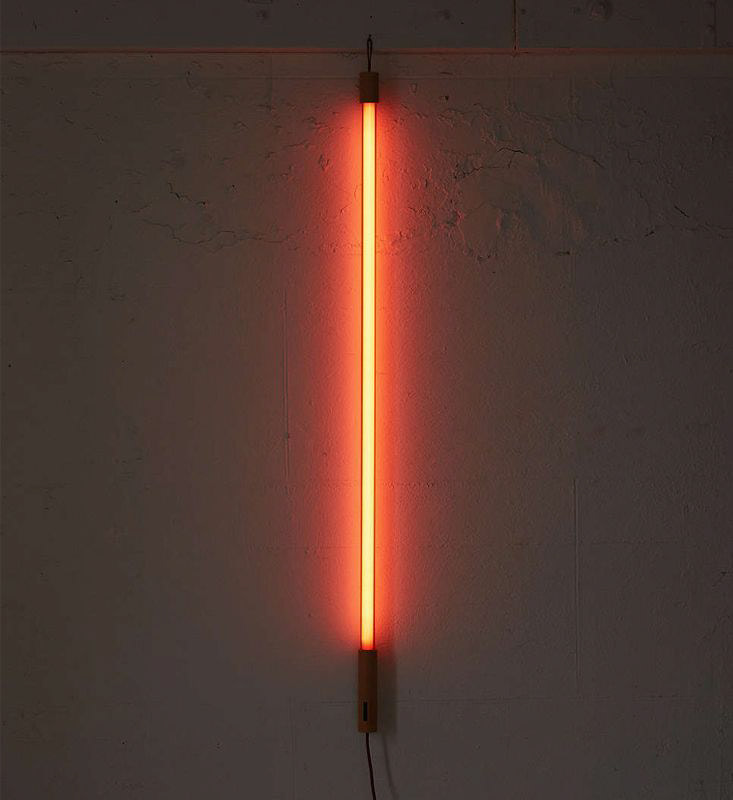

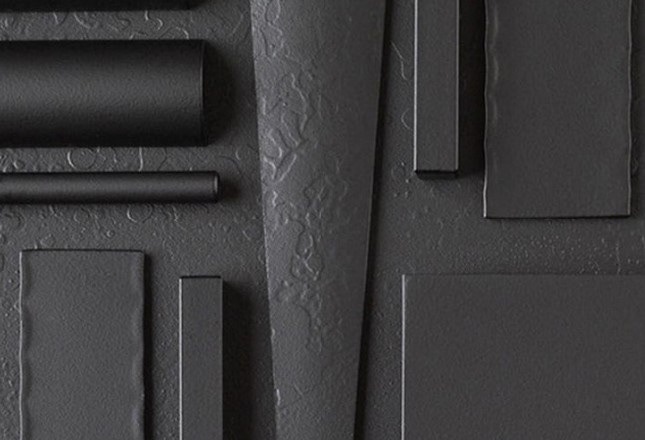

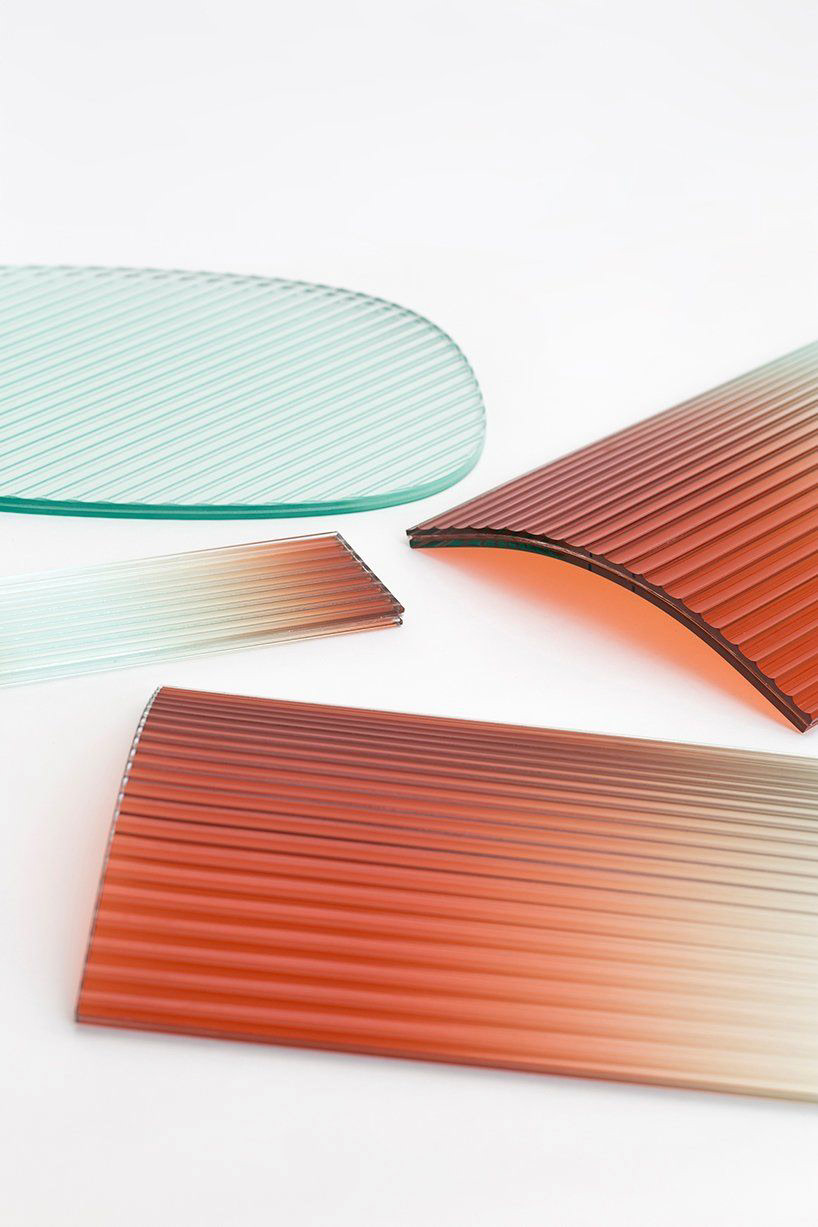

ALTERNATIVE MATERIAL PALETTE ONE - INDUSTRIAL NEON

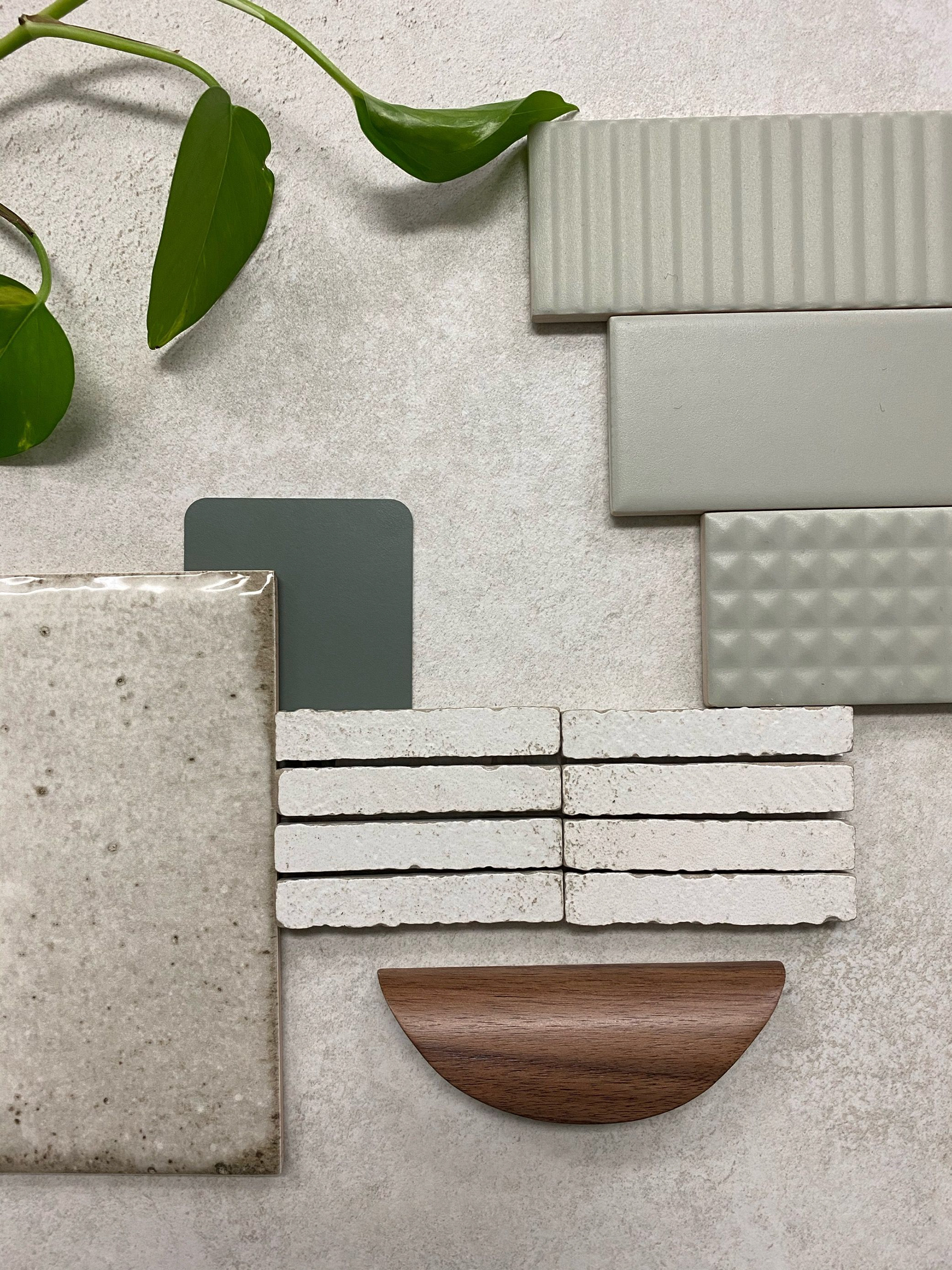

ALTERNATIVE MATERIAL PALETTE TWO - NATURAL NEUTRAL
